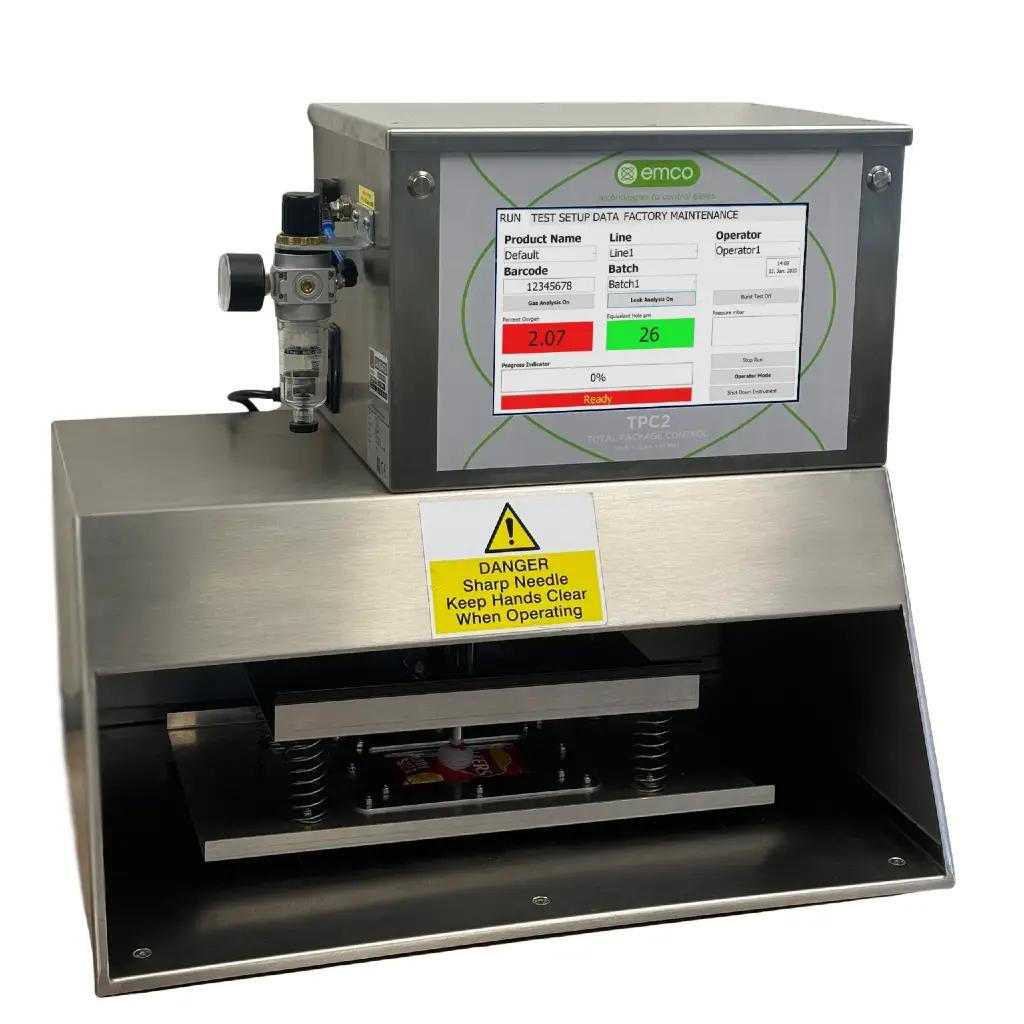

Automatic Gas + Leak + Burst Tester - TPC Industrial

A semi-automatic GAS analyser with LEAK detection and BURST tester in one single, easy to manage instrument.

O2 + CO2 + LEAK + BURST in one single, sequential test

Leak tester sensitivity from 5 -500 micron hole size, burst test pressure from 0 - 999 mb

Backflush after each and every test ensures NO blocked needles, EVER!

Fully DIN 55508-1, ASTM F1140 and ASTM F2054 compliant

Large, bright 10 inch colour touch-screen and custom stainless steel case

details

Product information

The TPC (Total Package Control) is our top of the range instrument for total pack control. It removes human error by automating the sampling process and is able to perform measurement of GAS + LEAK + BURST, in one single test. With the semi automatic sampling process, companies can be assured of accurate readings, 100% of the time.

The sampling system removes the need for septa (self adhesive foam pads) for airtight analysis and the back-flush ensures that the needle and gas circuit is purged completely after every single test, ensuring there is need to change needles, over and above the annual service.

The LEAK detector works by gently inflating the pack to a very low target pressure and then measuring the flow to maintain that pressure. This flow rate can then be correlated to an equivalent hole size from 5 - 500micron.The BURST function inflates the pack until it bursts. The highest pressure reached prior to bursting is recorded and this gives the operator critical information on the seal integrity of the pack. All the data can then be accessed on screen and or sent to a PC for further analysis and trending.

Specification

Download a data sheet for full product and technical specification

Applications

Food processing packing systems / Modified Atmospher Packaging

GAS analyser, LEAK Detector, BURST Tester or all 3. This instrument has multiple configurations.
